Welcome to CHURCHILL SECURITY SYSTEMS

Closed circuit television has become increasingly popular over the last few years. Unfortunately, most of the reasons for this increase is due to anti social behaviour in many of our towns and cities. CCTV has proved to be very effective in the fight against commercial premises break in's and disruption to businesses through theft and damage.

Deployed at home, It's comforting to be able to see who's at the front door, if it's a delivery or an unwanted salesman or religious group you may not wish to be bothered by. The real bonus is picture quality which has improved greatly due to digital developments, and systems are now more affordable than ever before.

Utilising both analogue and IP CCTV equipment, Churchill Fire and Security can design a system which meets the individual needs of the customer along with a wide range of software to enable remote viewing via the internet, mobile phones and tablets. CCTV systems can be configured for remote monitoring via an ARC (alarm receiving centre) and can be integrated with access control and intruder alarm systems. OK, so without getting too technical...

ANALOGUE CCTV EXPLAINED

In the traditional analogue CCTV application, security cameras capture an analogue video signal and transfer that signal over coax cable to the Digital Video Recorder (DVR). Each camera may be powered by plugging in the power supply right at the camera or by using RG59 Siamese cable which bundles the video and the power cables. The DVR converts the analogue signal to digital, compresses it, and then stores it on a hard drive for viewing at leisure. Intelligence is built into the DVR to handle such things as scheduling, motion detection, and digital zoom.

Monitors for viewing the video are connected to the DVR, or it can be set up to publish over an internal network for viewing on PCs. The DVR can also be set up to broadcast over the Internet and can add password protection and other features. When broadcasting over the Internet, the video for all of the cameras is transmitted as one stream (one IP address). Making it highly efficient.

IP CCTV CAMERA SYSTEMS

In the IP world, each network camera captures an analogue image but immediately converts it to digital inside the camera. Some digital processing can happen right at the camera, such as compression and motion detection. The digital video stream is then broadcast over the local area network (LAN) using Ethernet (CAT5 or CAT6) cable. Power is supplied to the cameras through the Ethernet cable via Power-Over-Ethernet (POE) adapters built into the cameras and at the

(POE enabled) switch.

The Ethernet cable for each camera is plugged into the switch which feeds into the network hub. As with all network devices, some set-up needs to be done for each network camera to set up its IP address and other identifying attributes.

A Network Video Recorder (NVR) performs the same function as its DVR cousin in the analogue world. It captures each camera’s signal, compresses, and records it. The main difference is that the video feeds are digital (and much higher resolution) and not analogue. Software built into the NVR provides features such as intelligent search and zoom, etc. The NVR combines the video streams from the cameras and handles the broadcast over the LAN and internet for local and remote viewing.

Fill out my online form.

CUSTOMER ENQUIRY FORM

CLICK ON THE IMAGE FOR THE SERVICE YOU ARE LOOKING FOR.

CCTV SYSTEMS

ARE YOU CURRENTLY CONSIDERING INSTALLING A CCTV SYSTEM?

HOW WE CAN HELP

Commercial systems must conform and be registered under the data protection act. We will provide you with documentation and help with registration.

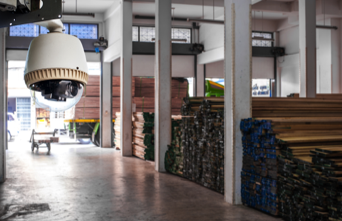

Churchill Fire and Security have vast experience in providing, installing and maintaining CCTV security systems in warehouses and offices for both large and small premises.

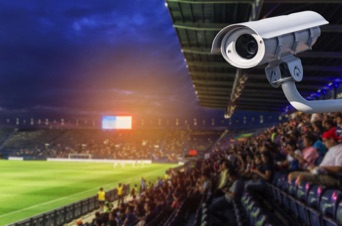

Churchill Fire and Security previous projects include designing, installing and maintaining bespoke security systems for football stadiums and sports arenas.

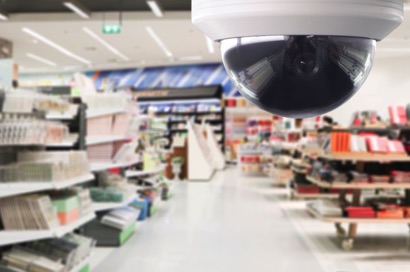

CCTV and other modern security options have saved retail parks, garages and supermarkets huge amounts of money in both crime prevention and Insurance premiums. Churchill Fire and Security have many years of experience in this field.
